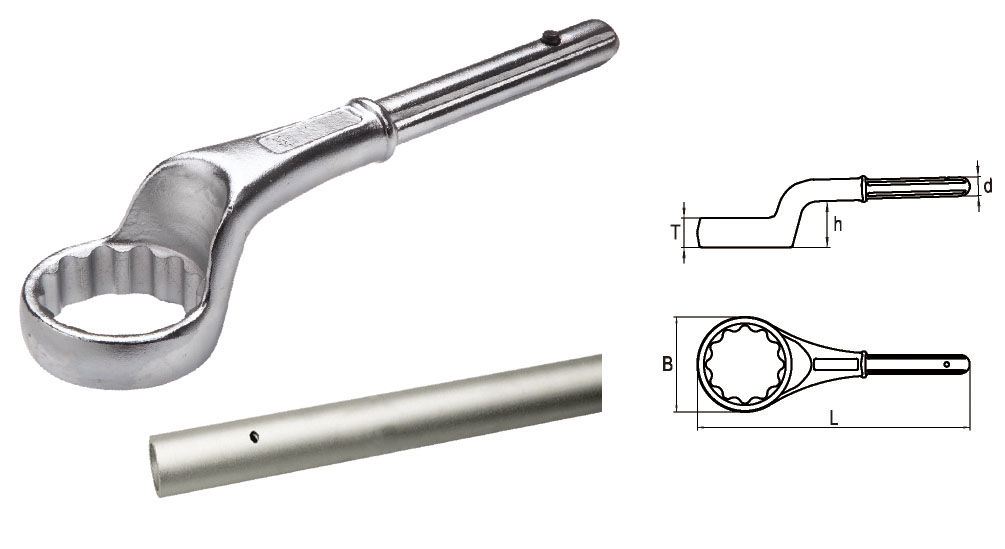

mm | in | L (mm) | T(mm) | b (mm) | d (mm) | h (mm) | g | PCS |
22 | 7/8,15/16 | 180 | 17.4 | 38 | 18.3 | 29 | ||
24 | 1 | 180 | 17.4 | 38 | 18.3 | 29 | 420 | 25 |
27 | 1.1/16,1.1/8 | 190 | 17.4 | 41.5 | 18.3 | 31.5 | 440 | 25 |
30 | 1.3/16 | 200 | 18.4 | 47 | 18.3 | 33 | 520 | 25 |
32 | 1.1/4 | 235 | 18.4 | 50 | 21.3 | 34 | 760 | 25 |
34 | 1.5/16,1.3/8 | 235 | 18.4 | 50 | 21.3 | 34 | 520 | 25 |
36 | 1.7/16,1.1/2 | 245 | 20 | 55 | 21.3 | 35 | 840 | 25 |
41 | 1.9/16,1.5/8, 1.11/16,1.3/4 | 265 | 22 | 61.5 | 21.3 | 39 | 1000 | 10 |
46 | 1.13/16,1.7/8 | 280 | 23 | 68.5 | 24.1 | 40 | 1350 | 10 |
50 | 1.15/16,2,2.1/16 | 290 | 25.5 | 75 | 24.1 | 42 | 1470 | 10 |
55 | 2 1/8,2.3/16,2.1/4,2.5/16 | 300 | 28 | 80 | 24. 1 | 45 | 1500 | 10 |
60 | 2.3/8,2.7/16,2.1/2 | 345 | 30.5 | 89 | 29.1 | 49 | 2200 | 10 |
65 | 2.9/16,2.5/8,2.11/16 | 355 | 33 | 97 | 29.1 | 53 | 2000 | 5 |
70 | 2.3/4,2.13/16,2.7/8 | 365 | 35.5 | 104 | 29.1 | 55 | 2320 | 5 |
75 | 2.15/16,3,3.1/16 | 375 | 38 | 109 | 29.1 | 57.5 | 3000 | 4 |
80 | 3.1/8,3.1/4,3.3/8 | 385 | 40.5 | 124 | 29.1 | 59 | 4100 | 5 |
85 | 3.3/8,3.1/2 | 385 | 40.5 | 124 | 29.1 | 59 | 3800 | 5 |
90 | 3.5/8 | 410 | 45 | 140 | 29.1 | 63 | 5750 | 4 |
95 | 3.3/4,3.7/8 | 410 | 45 | 140 | 29.1 | 63 | 4600 | 5 |
100 | 4,4.1/8,4.1/4 | 415 | 45 | 145 | 29.1 | 68 | 6500 | 2 |
105 | 4,4.1/8,4.1/4 | 415 | 45 | 145 | 29.1 | 68 | 6250 | 2 |
