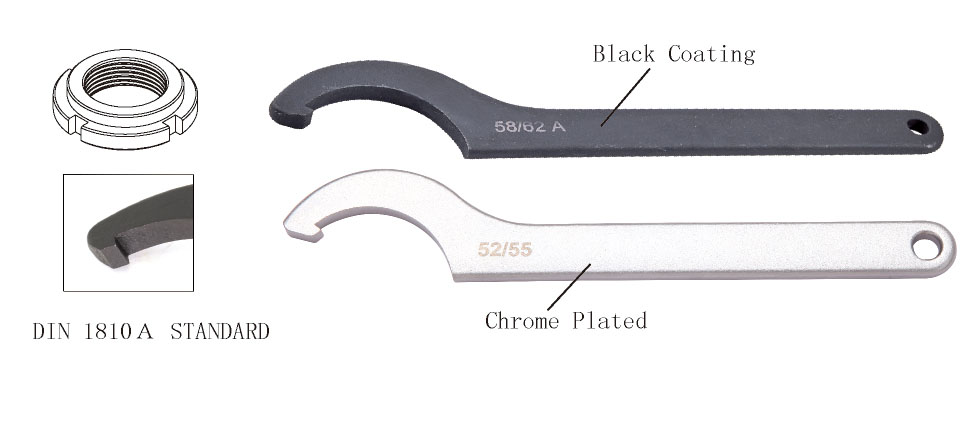

DIN 1810A STANDARD
Item Code | Size mm | L mm | d mm | t2 mm | Measurement (cm) | Pcs | kg | |
TD121212-14 | 12月14日 | 110 | 2 | 1.5 | 13.5x14x21 | 200 | 6 | 5 |
TD121216-20 | 16-20 | 110 | 2 | 1.5 | 13.5x14x21 | 200 | 6 | 5 |
TD121225-28 | 25-28 | 135 | 2.5 | 2 | 21.5x16x12 | 100 | 6 | 5 |
TD121230-32 | 30-32 | 135 | 2.5 | 2 | 21.5x16x12 | 100 | 6 | 5 |
TD121234-36 | 34-36 | 170 | 3 | 2.5 | 20x21.5x15 | 100 | 9 | 8 |
TD121240-42 | 40-42 | 170 | 3 | 2.5 | 20x21.5x15 | 100 | 9 | 8 |
TD121245-50 | 45-50 | 205 | 3.5 | 3 | 23.5x26.5x16.5 | 100 | 19 | 18 |
TD121252-55 | 52-55 | 205 | 3.5 | 3 | 23.5x26.5x16.5 | 100 | 19 | 18 |
TD121258-62 | 58-62 | 240 | 4 | 3.5 | 27x13.5x21.5 | 50 | 15 | 14 |
TD121268-75 | 68-75 | 240 | 4 | 3.5 | 27x13.5x21.5 | 50 | 15 | 14 |
TD121280-90 | 80-90 | 280 | 5 | 4 | 30.5x16.5x16.5 | 30 | 14 | 13 |
TD121295-100 | 95-100 | 280 | 5 | 4 | 30.5x16.5x16.5 | 30 | 14 | 13 |
TD1212110-115 | 110-115 | 335 | 5 | 4 | 36x19.5x13.5 | 20 | 17 | 16 |
TD1212120-130 | 120-130 | 335 | 5 | 4 | 36x19.5x13.5 | 20 | 17 | 16 |
TD1212135-145 | 135-145 | 385 | 6 | 5 | 41.5x23.5x18.5 | 20 | 26 | 25 |
TD1212155-165 | 155-165 | 385 | 6 | 5 | 41.5x23.5x18.5 | 5 | 26 | 25 |
TD1212180-195 | 180-195 | 465 | 6 | 5 | 49.5x13.5x19 | 10 | 22.5 | 21 |
TD1212205-220 | 205-220 | 465 | 6 | 5 | 49.5x13.5x19 | 10 | 22.5 | 21 |
